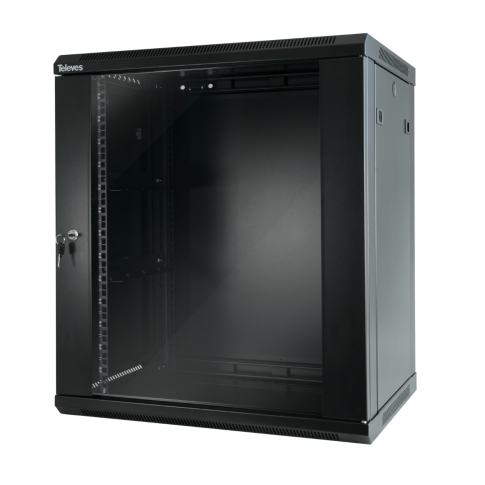

Televés 19" räkkikaappi 15+2RU, valmiiksi koottu

The 15+2RU rack Cabinet is used for the housing of active or passive equipment, visible from the outside and protected by a safe steel lockable structure. Compatible with optical fiber, data cables or coaxial cable installations, it allows the grouping of different technologies in a single cabinet.
Total capacity is 17RU, namely 15RU and an additional 2RU, taking advantage of the top and bottom ends.
Designed for either wall or ground mounting.

Dimensions (W x H x D): 600mm x 771mm x 450mm
Weight: 33kg

• High strength and durability: made of steel, with a coating based on polyester resins and lead-free pigments
• Loading capacity up to 60kg
• Easy to mount: includes an L-bracket for wall mounting
• Bracket independent of the rack: allows to mark the drilling points on the wall, screw it in and then hang the rack on it
• Practicality of use: reversible and removable front door with flexible sockets and hinged folding side doors
• Installation of different types of panels or equipment: lateral profiles are depth-adjustable
• Safety: Tempered glass, lockable hinged front door
• Natural ventilation, with forced ventilation option
• Laser marking: numerical identification of each "RU"

• Black colour (RAL 9004)
• Horizontal cable guides: 1U cable panels located at the top and bottom of the cabinet to lead cabling from one side to the other and facilitate connections
• Indoor installation (IP20)
• A 120x120mm ventilation kit can be incorporated for the installation of active equipment, such as headends

Recommended ventilation systems for racks:

All our racks are equipped with natural ventilation, but in most cases this is not sufficient as high temperatures can affect the performance of the individual parts of the connection. We therefore recommend installing a forced ventilation system.

Our fans are for ceiling installation because they take advantage of the natural upward flow of warm air by placing them at the top of the enclosure.
